Solar 3.4 kWp Grid Connected Net Metering
The benefits of a Solar 3.4 kWp Grid Connected net metering system in Cyprus.

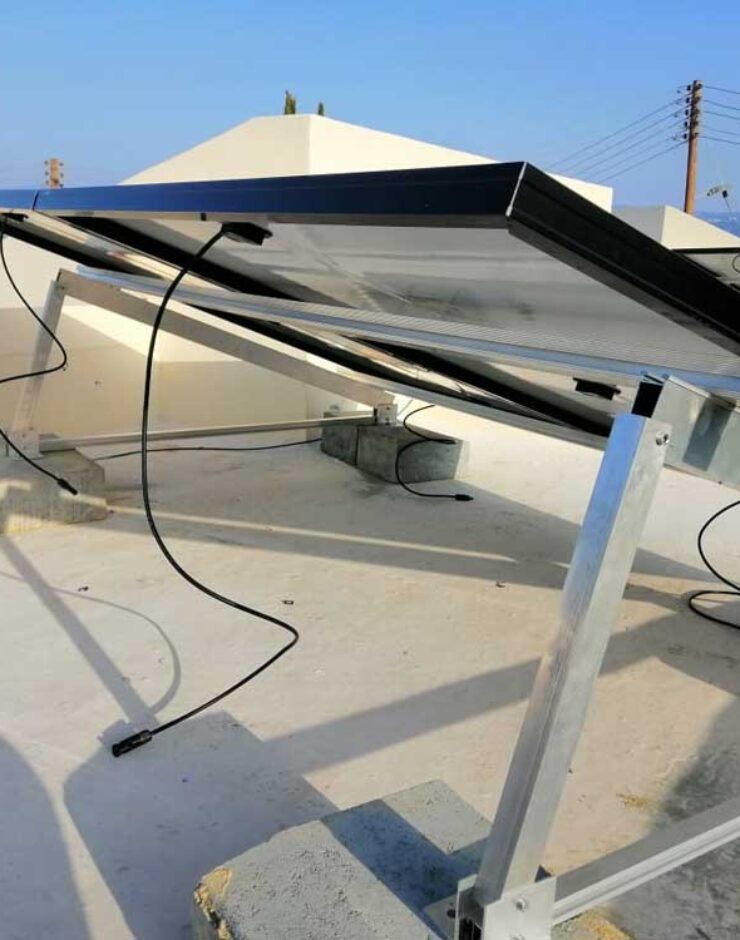

Customers from Ineia called us for advice on the installation of a photovoltaic system at their home to reduce their electricity bills. After visiting the premises and considering his electricity consumption over the past 2 years, we advised them to install a 3.4 kWp Solar Grid Connected Net Metering system. This would achieve financial savings of approximately 80% on their existing electricity bills, in all likelihood leading to a return on investment period of around 5 years.
The equipment used was HiKu, a Canadian Solar supplier and the ZCS Azzurro 3-phase KTL solar inverter.
The compact ZCS Azzurro three-phase inverters are the ideal solution for small and medium-sized PV systems for commercial or residential applications and small industries. The Italian technology developed by ZCS makes the Azzurro series efficient, versatile and highly functional. The wide input range makes the products easy to configure and suitable for any type of requirement, in new installations or retrofit projects.
HiKu High-efficiency module exceeding 455 W | |
|---|---|
| dual cell + poly & mono | Â |
| Power range | 330 ~ 455 W |
| Low NMOT | 42 ¹ 3 °C |
| LID + LeTID | less than 2.0% |
Azzurro 3-phase String Inverter 3.3KTL – 12KTL | |
|---|---|
| Maximum Performance | 98.3% |
| Dual Input Section | Independent MPPT |
| Updates and Diagnostics | via SD Card |
| Warranty | up to 10 years |
| Operating Input Range | 160v – 960v |
| MPPT | Dual-Channel |
| EMC | EN 61000-6-1/2/3/4 |
ZCS Azzurro technology
Performance optimisation WiFi integration on the ZCS platform for stable, effective and intelligent connectivity. Maximum performance 98.3%. Stable efficiency in all working conditions. Rapid and accurate MPPT algorithm Dual input section with independent MPPT.
Protection rating of IP65 Integrated string combiner with different configuration options Power Management Unit 4-inch LCD graphic display. Updates and diagnostics via SD card.
Rust-proof, corrosion-proof and UV proof aluminium exterior casing. Natural ventilation cooling. Flexible and user-friendly management of operating parameters. Topology without transformer. 10 year ZCS warranty
Intelligent Grid Management. Dynamic management of grid feed-in âZero Grid Feed-inâ functionality (Possible through current sensor ZST-ACC-TA and anti-reverse power controller ZSM-ZEROINJ). Possibility to manage reactive power. Remote control over of the active/reactive power limit
Ideal For Retrofitting. Wide operating input range from 160V to 960V also suitable for small string systems. Compact size. Simple and user-friendly installation and conguration. Dual MPPT channel
HiKu High Power Mono Perc
- 26 % more power than conventional modules
- Up to 4.5 % lower LCOE
- Up to 2.7 % lower system cost
- Low NMOT: 42 ¹ 3 °C
- Low temperature coefficient (Pmax): -0.35 % / °C
- Better shading tolerance
MORE RELIABLE
- Lower internal current,
- lower hot spot temperature
- Minimizes micro-crack impact
- Heavy snow load up to 5400 Pa,
- wind load up to 3600 Pa*
